Heltec 1 Pair Point to Point Wireless Network Bridge Wi-Fi HaLow Dongle V2

Heltec 1 Pair Point to Point Wireless Network Bridge Wi-Fi HaLow Dongle V2

$48.86
$48.86
Koszt wysyłki obliczany przy realizacji zakupu.
Model
Wi-Fi HaLow Dongle

Summary

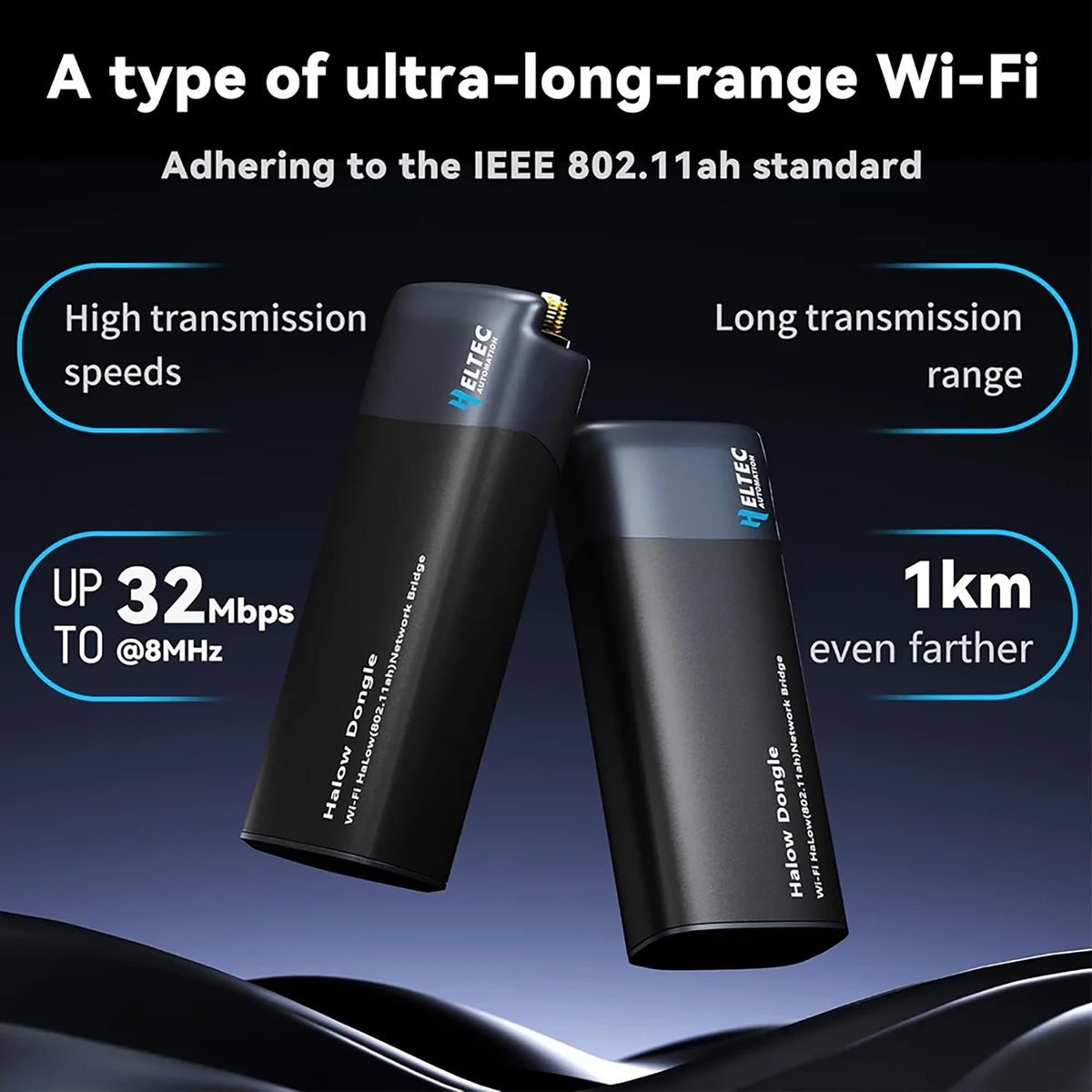

Wi-Fi HaLow Dongle V2 is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption. You can think of it as a type of ultra-long-range Wi-Fi or Ethernet cable, and maintaining high transmission speeds even at extended distances.

This long-range communicator based on Wi-Fi HaLow can replace Ethernet cables in certain scenarios. IEEE 802.11ah protocol, HT-HD01 operates in the unlicensed SUB-1G frequency band (902~928 MHz). It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 27±1 dBm and data rates of up to 32.5 Mbps@8M.

Wi-Fi HaLow Dongle

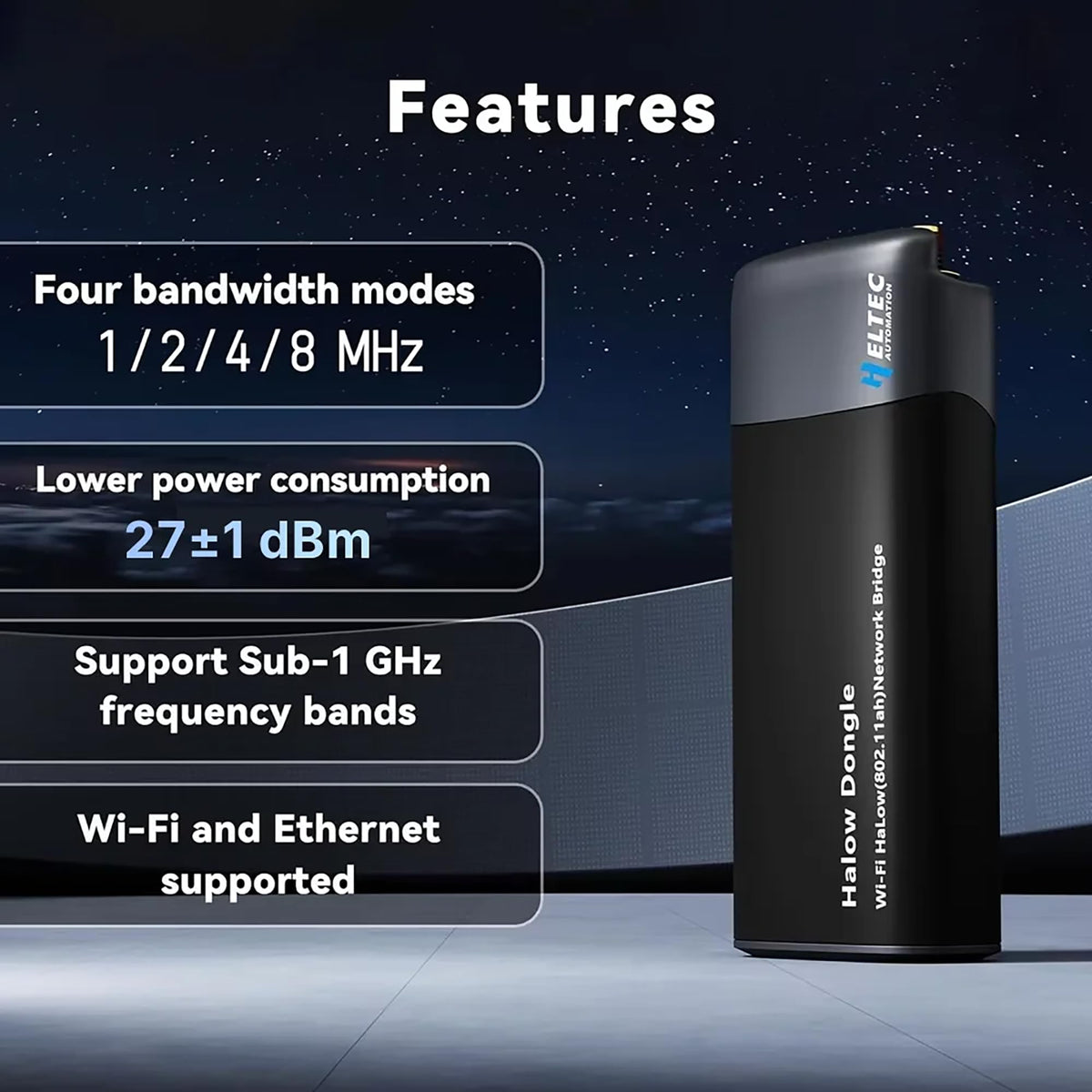

Main Features

  • Factory matching, plug and play.
  • You can connect your device to the Dongle through three methods: USB Type C, Ethernet, and 2.4GHz Wi Fi.
  • Long transmission range.
  • It can be seamlessly connected to traditional networks.
  • Large capacity allows access to a large number of devices simultaneously.
  • Low power consumption design.
  • High transmission rate, 32.5Mbps 8MHz.
  • Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
  • It offers four bandwidth modes 1/2/4/8MHz.
  • Lightweight and easy to deploy.
  • Rich in features and strong in extensibility.

Steps to Use

Dongle

Step 1:

Connect the AP device to the upstream router and power it on.

Dongle

Step 2:

Under default conditions, your device is already paired. You only need to power onthe STA device, and it will be able to communicate with the AP device.

dongle

Step 3:

You can directly connect your device to the RJ45 or USB-C port, or you can use the device's Wi-Fi to connect.

Specifications

MCU MT7628
Wi-Fi HaLow Module HT-HC01
Wi-Fi IEEE 802.11b/g/n
Wi-Fi HaLow IEEE 802.11ah; Frequency: 902-928MHz; Max. TX power: 27±1 dBm; Bandwidth: 1/2/4/8 MHz; Max Data Rate: 32.5 Mbps @ 8 MHz

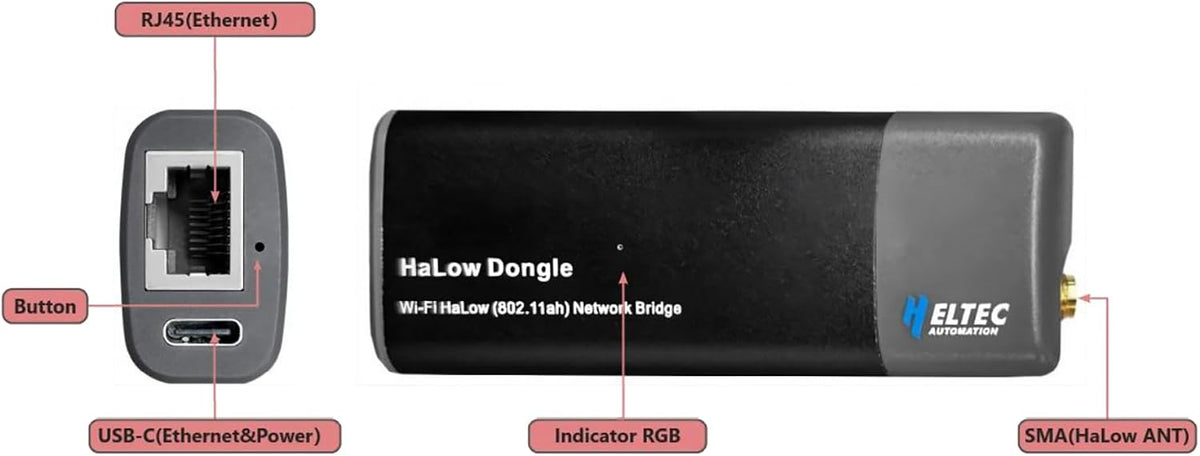

ANT Interface SMA female socket

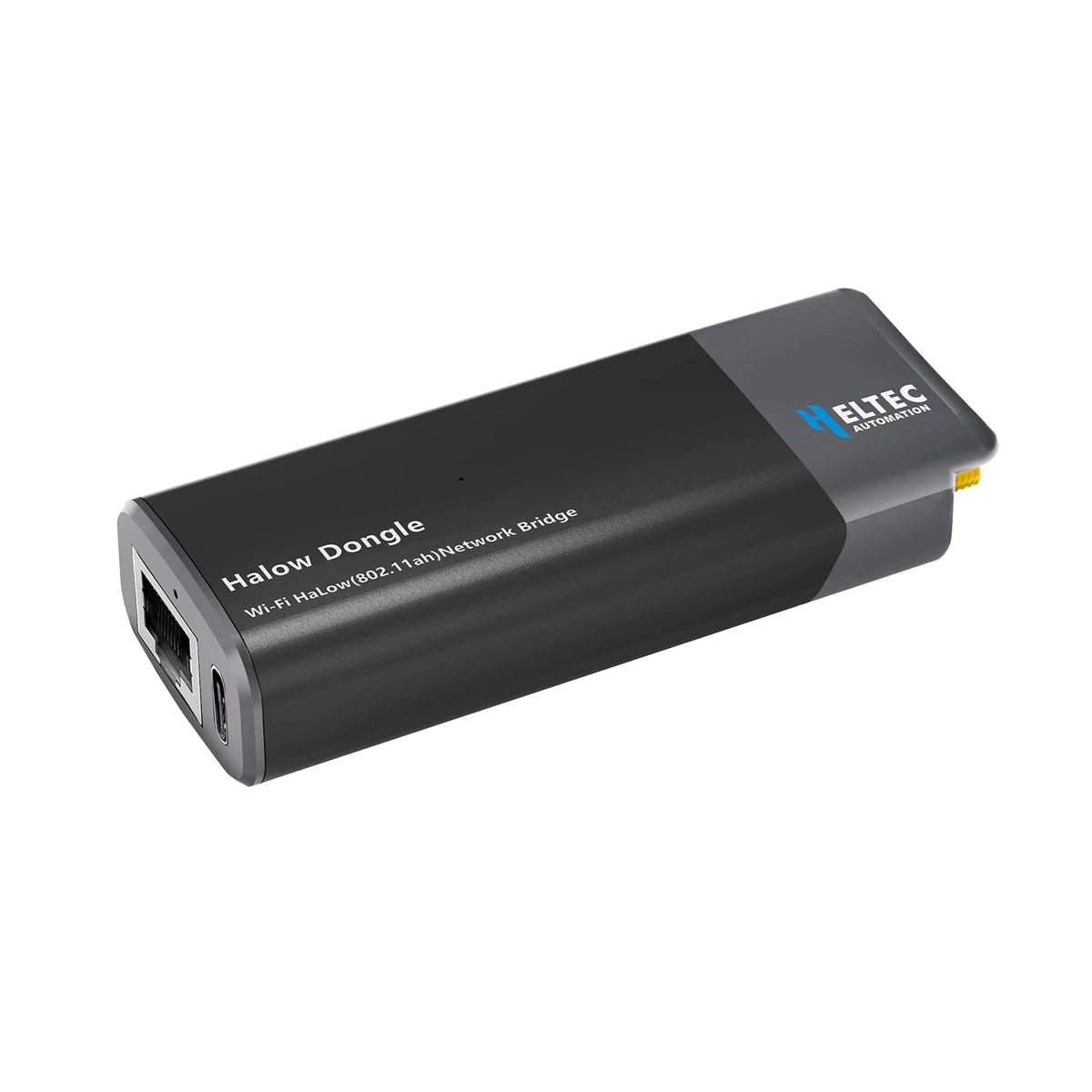

Ethernet RJ45(10/100M), USB-C
Operating Condition Temperature: -20 ~ +70℃, Humidity: 10%～90%( no-condensing)
Power USB-C, 5V
Consumption 300mA(Typical)
Ingress Protection Without waterproof treatment
Shell material Aluminum Alloy, Plastic
Weight 53.5g (Antenna included), 40g (Antenna excluded)

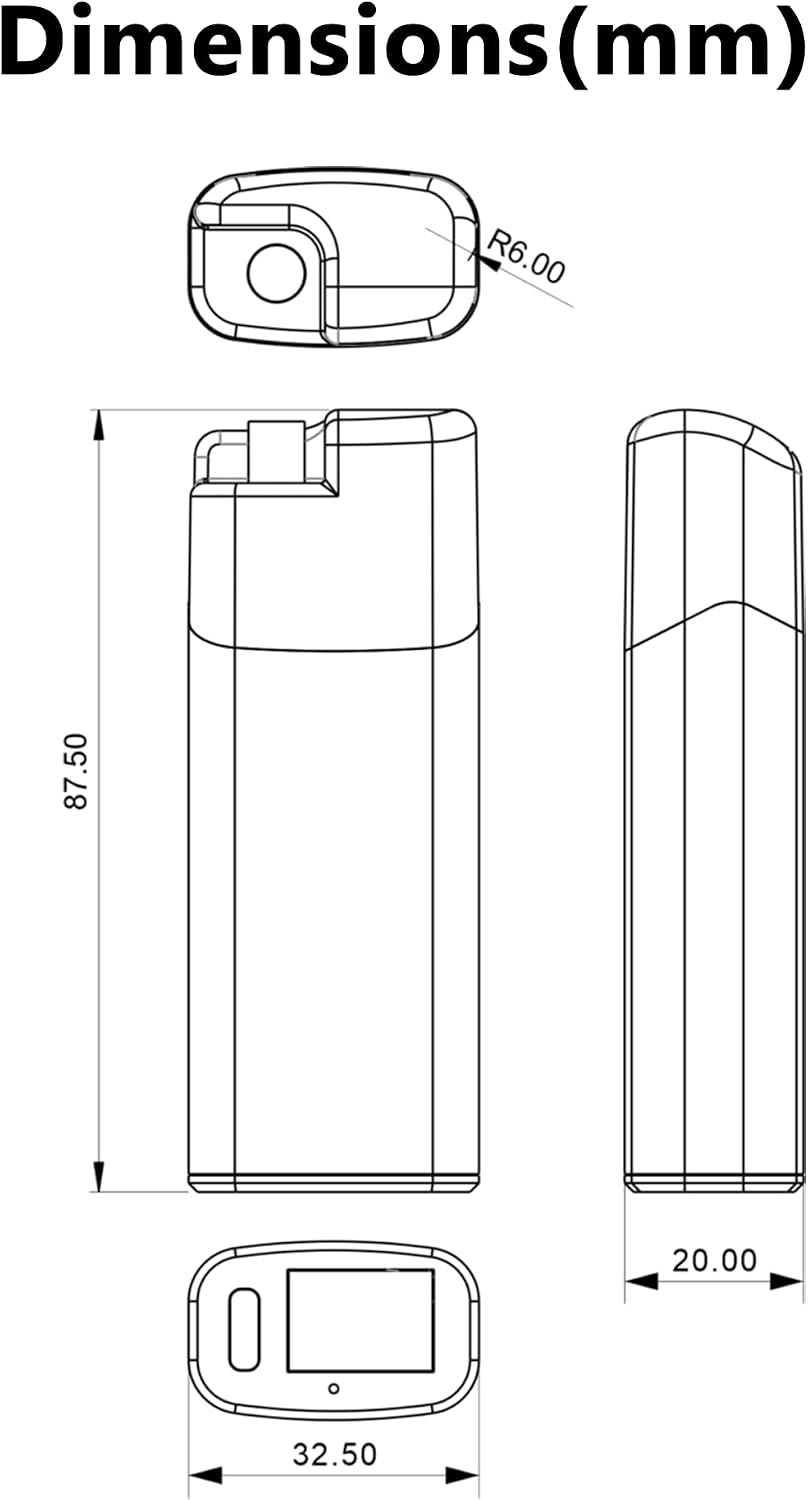

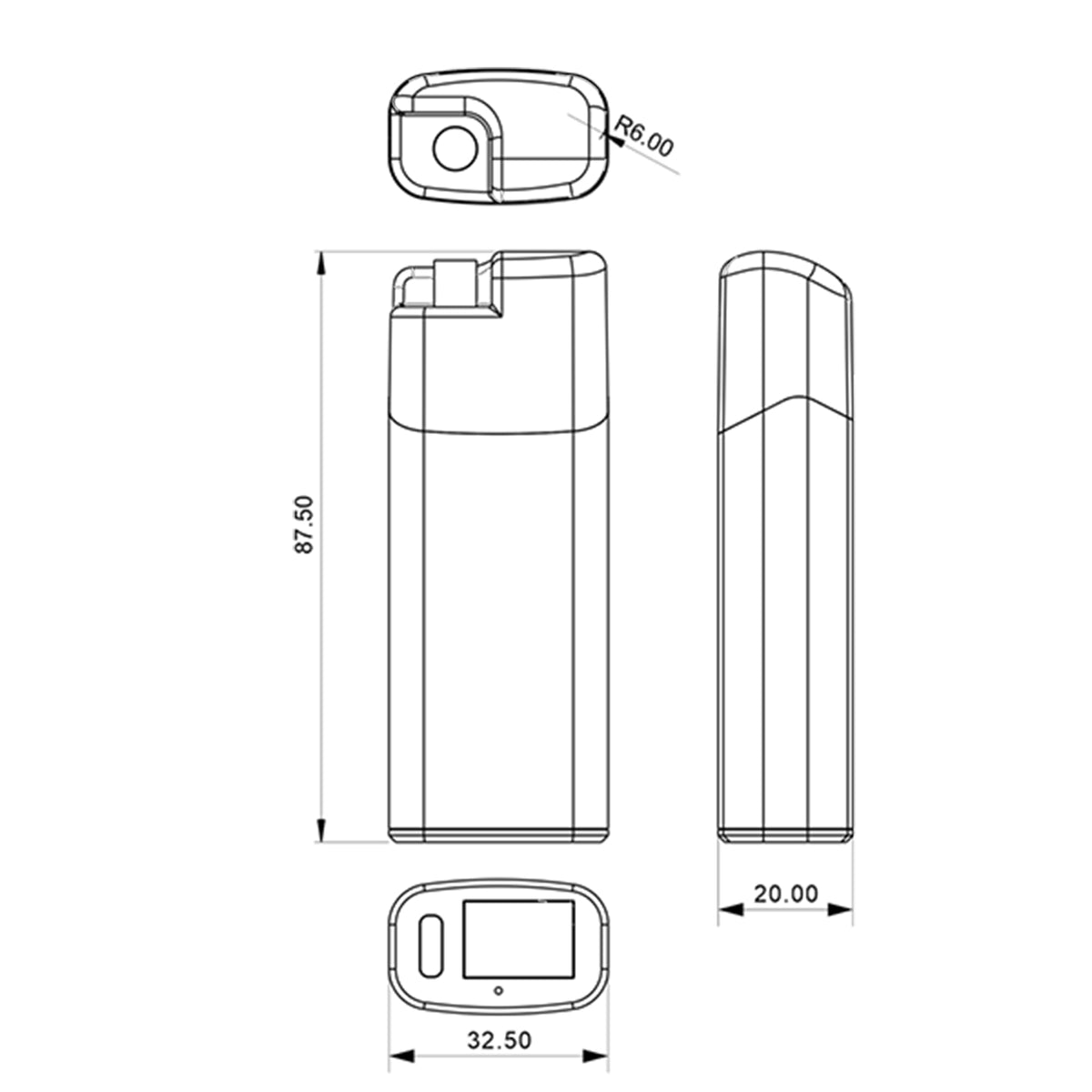

Dimensions 87.5*32.5*20mm(Antenna excluded)

Cooperate with HT-H7608 HaLow router to achieve star networking.

Dongle

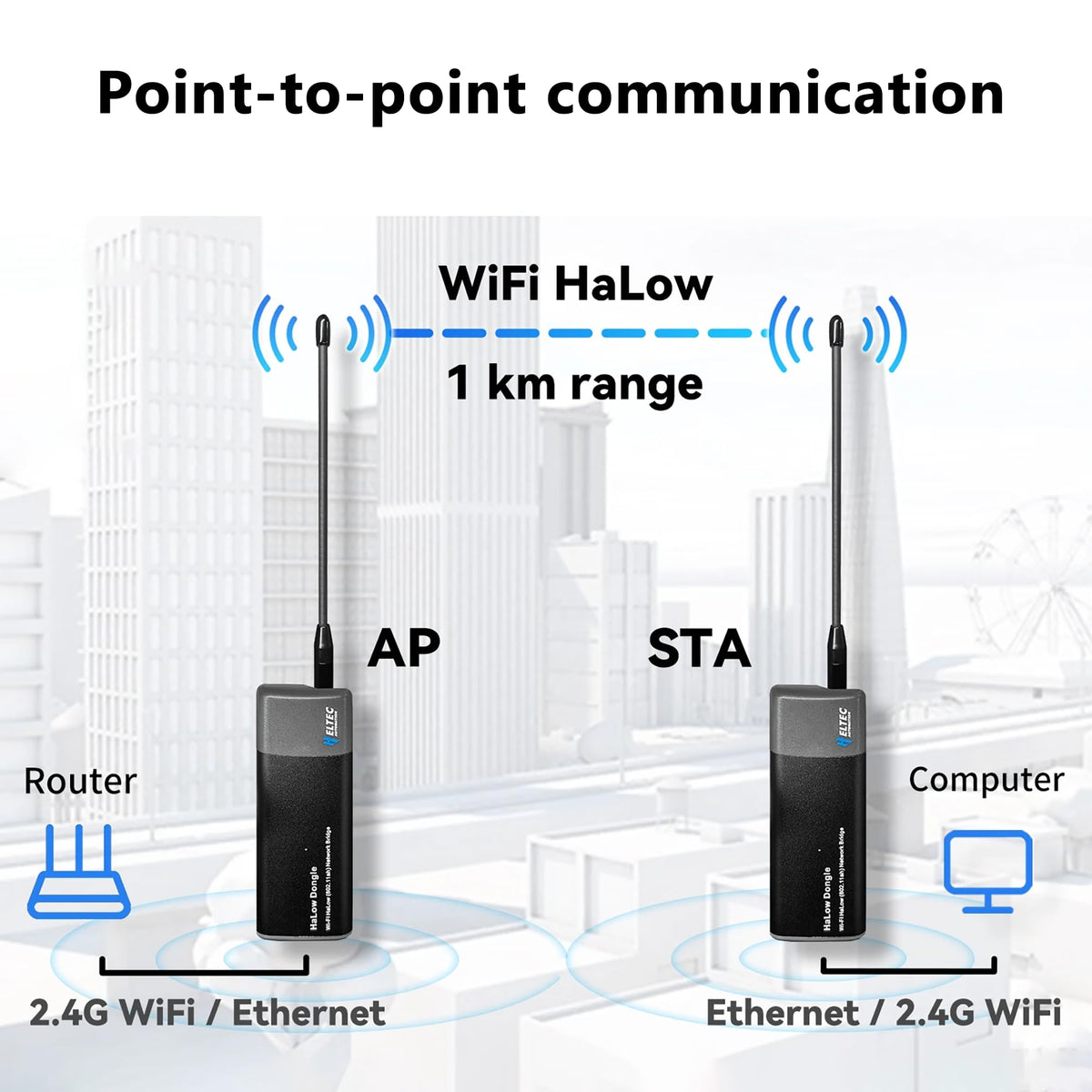

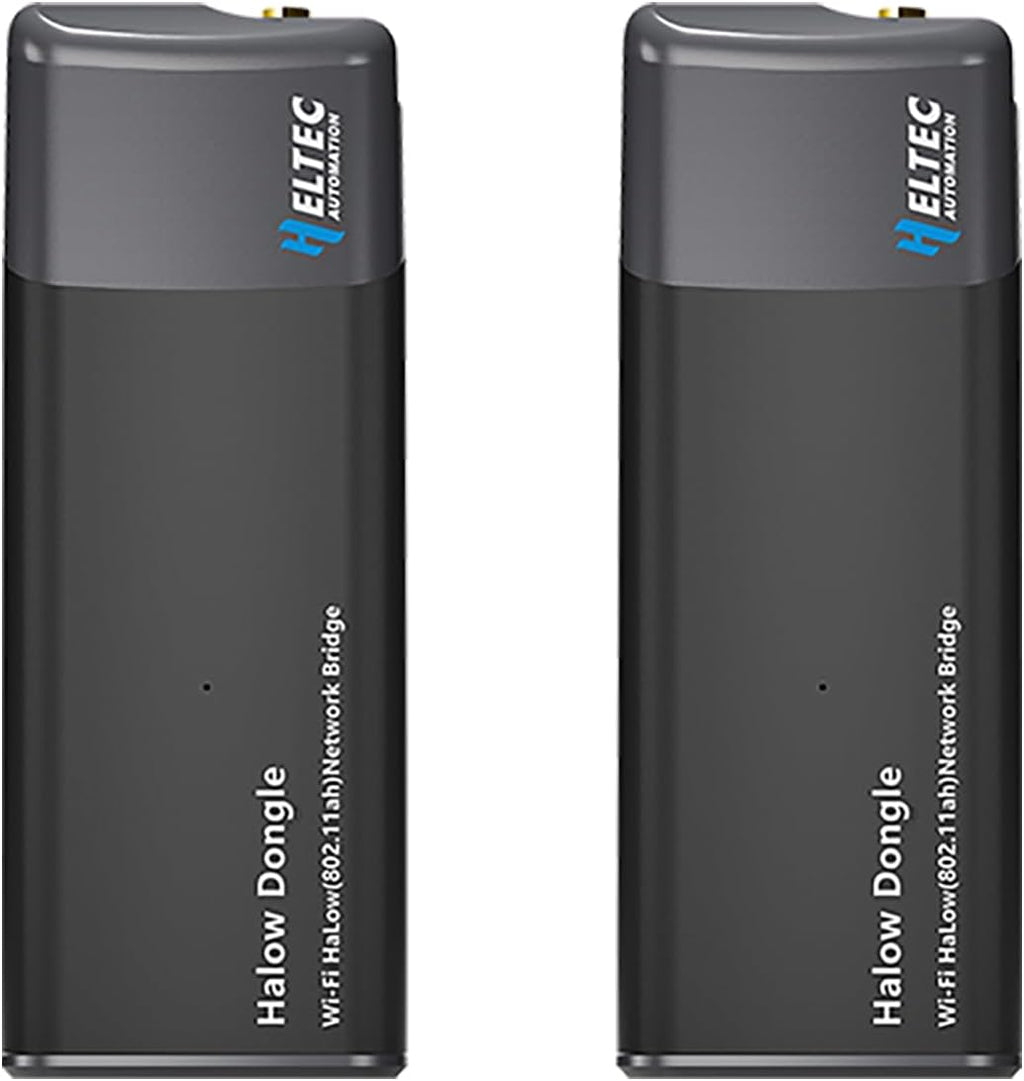

Pairing two HT-HD01 devices for point-to-point communication.

Dongle

Info: At least TWO HT-HD01 can be paired for use, or cooperate with a HaLow router.

Wi-Fi HaLow Dongle

Packing list

The default packing list without selecting any accessories is as follows:

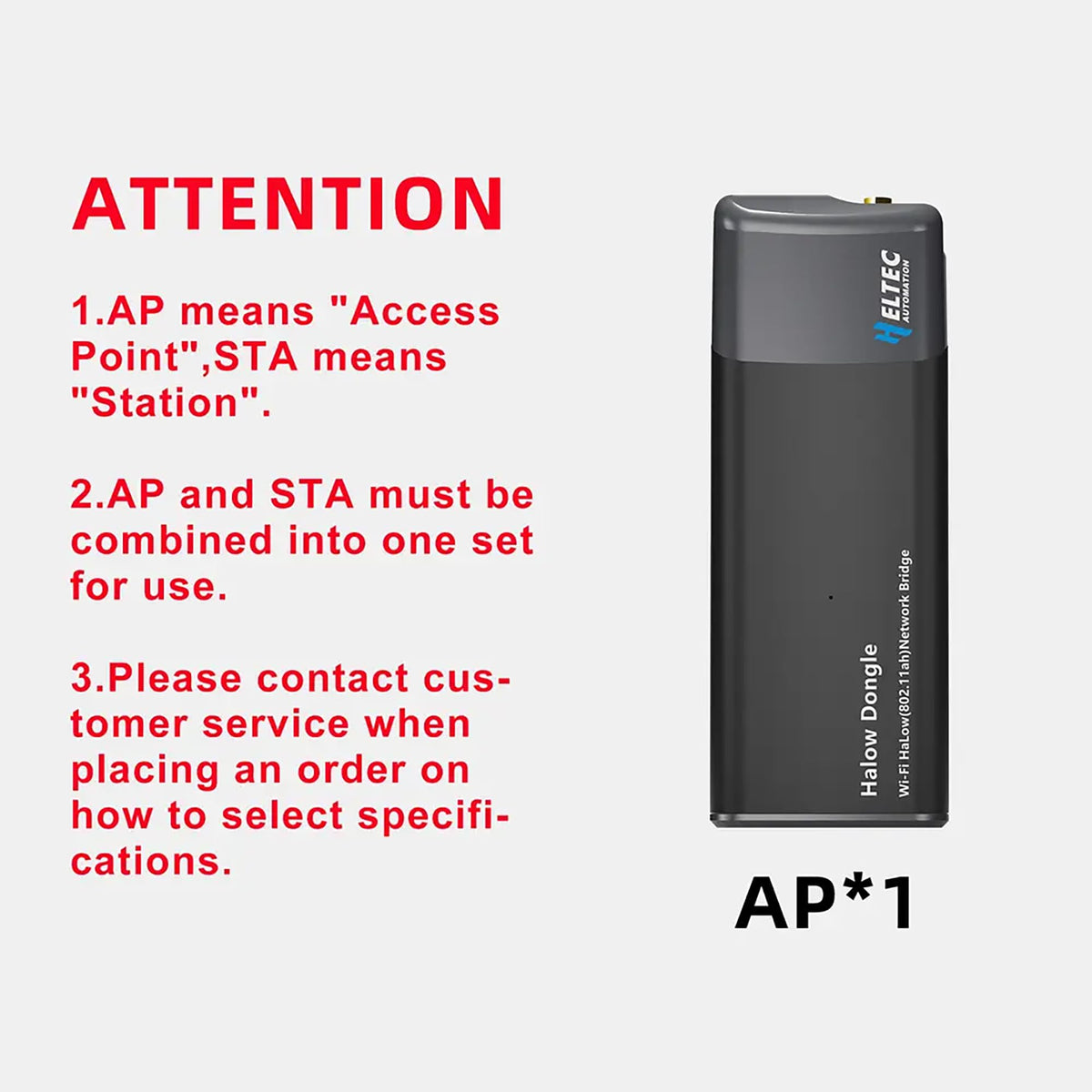

  • Wi-Fi HaLow Dongle AP (Only valid when selecting AP configuration) x 1
  • Wi-Fi HaLow Dongle STA (Only valid when selecting STA configuration) x 1

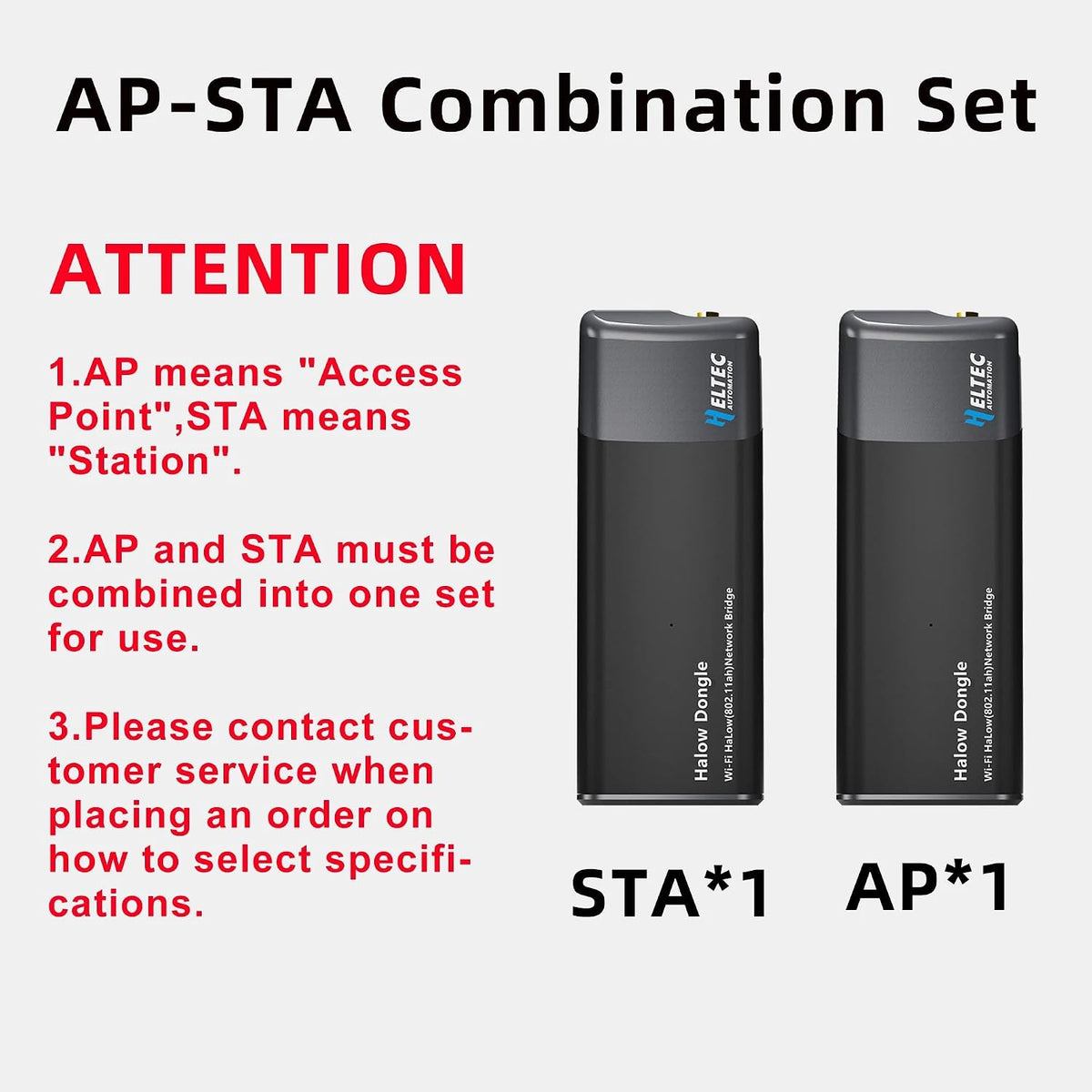

  • Wi-Fi HaLow Dongle AP+STA (Only valid when selecting AP+STA configuration) x 1
  • Atenna x 1
  • USB-C cable x 1
  • Reset button trigger pin x 1
  • Paper user guide x 1
  • Ethernet jumper x 1

  • What is HaLow Dongle: It is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption and improved penetration capabilities. Just like a type of ultra-long-range Wi-Fi.
  • Flexible and convenient: It seamlessly integrates with traditional Wi-Fi networks and is designed for ease of deployment. Whether for home use or IoT development, this device can drastically reduce wiring costs while enhancing networking flexibility.
  • Application scenarios: Simple configuration process, and versatile operating modes make it an excellent choice for a wide range of applications. Such as, Remote Locations and Outdoor Connectivity, Home Networking and Smart Home Applications etc.
  • Four bandwidth modes: It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 27±1 dBm and data rates of up to 32.5 Mbps@8M.
  • Operating frequency: 902-928MHz. Utilizing Wi-Fi HaLow technology and adhering to the IEEE 802.11ah standard, HT-HD01 operates in the unlicensed SUB-1G frequency band (902–928 MHz).
