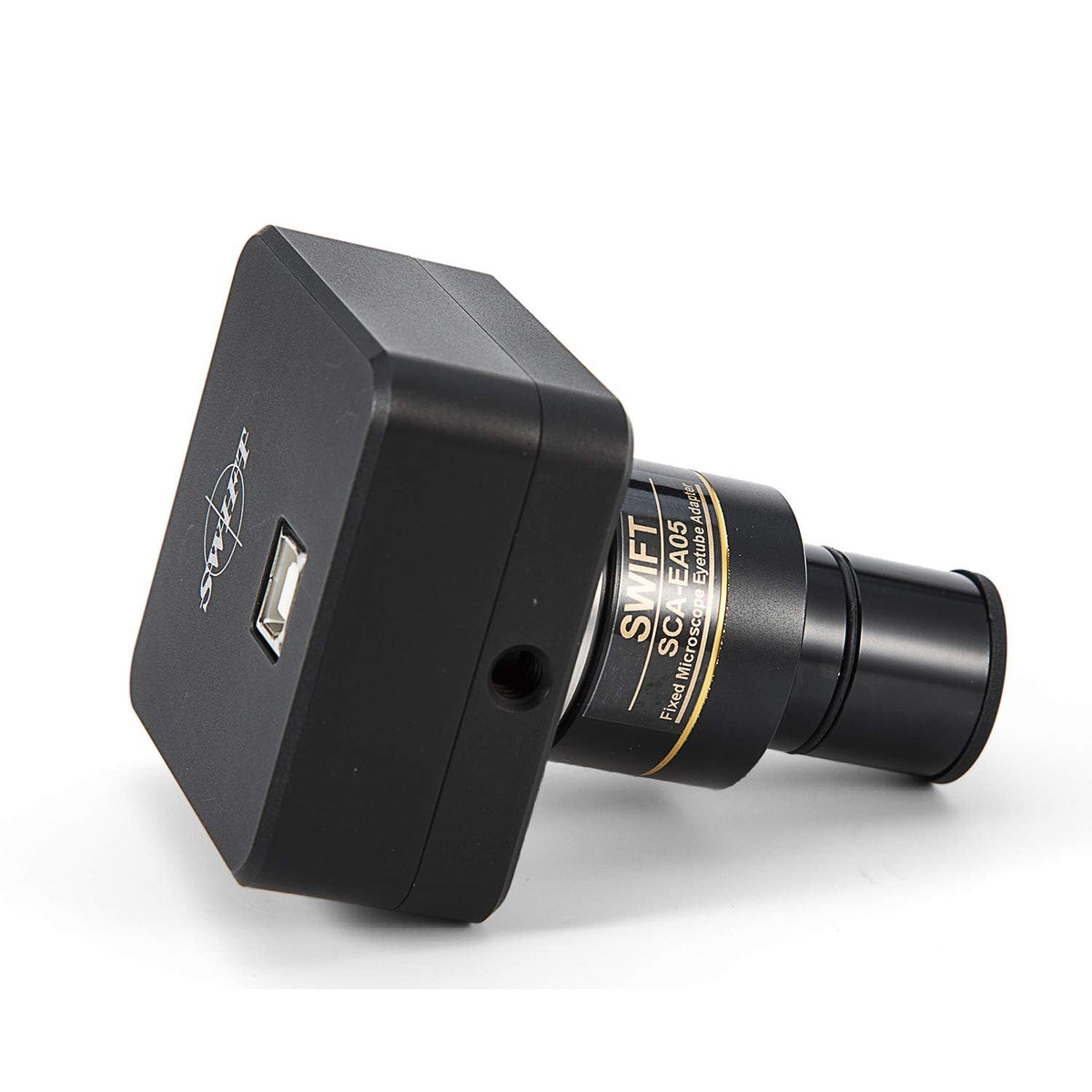

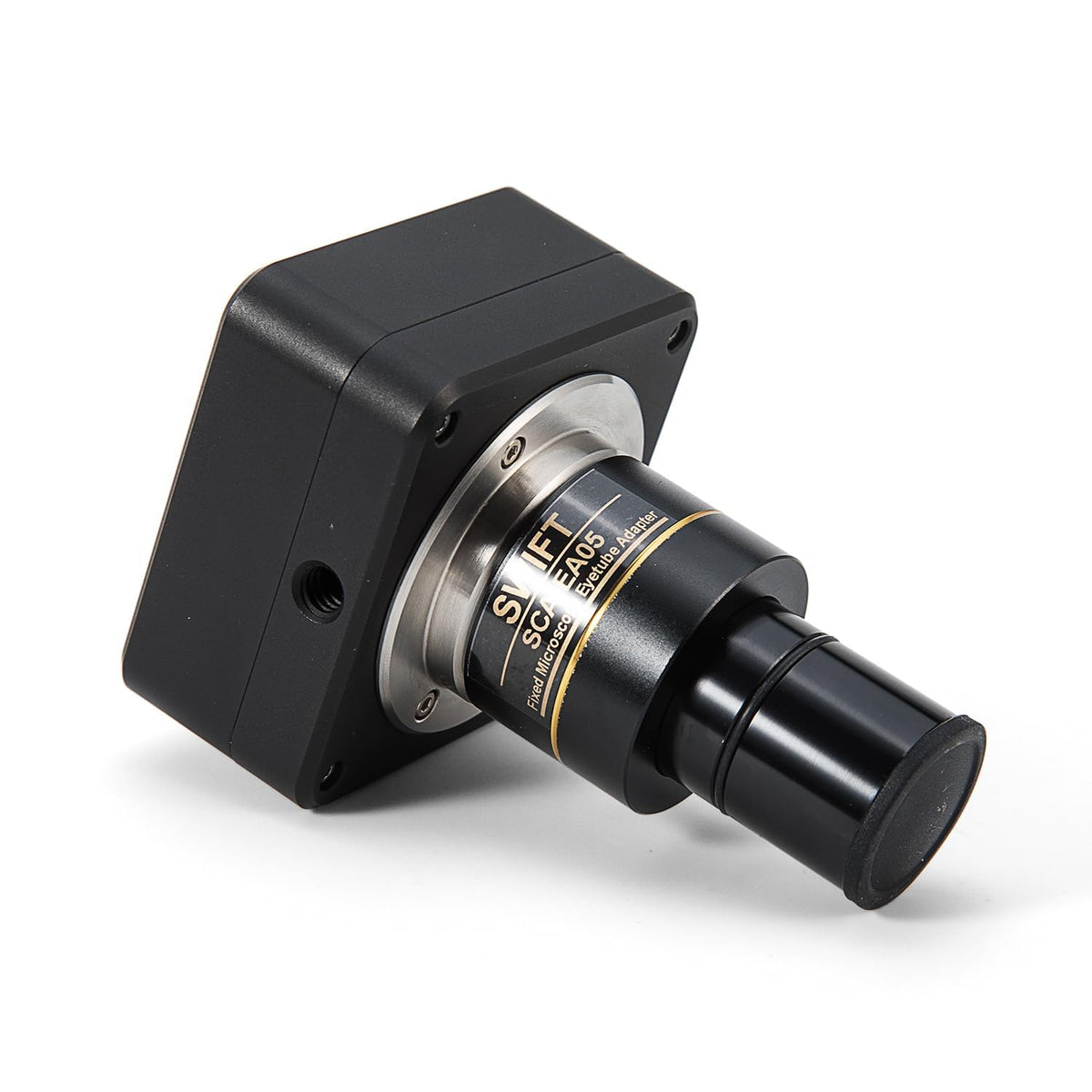

Swiftcam 20MP USB 3.0 Microscope Camera with Reduction Lens and Calibration Kit, Digital Eyepiece for Compound and Stereo Microscopes, Compatible with Windows/Mac/Linux
$126.00
Cena promocyjna
$126.00
Cena regularna
Pomiń, aby przejść do informacji o produkcie
Swiftcam 20MP USB 3.0 Microscope Camera with Reduction Lens and Calibration Kit, Digital Eyepiece for Compound and Stereo Microscopes, Compatible with Windows/Mac/Linux
$126.00
Cena promocyjna
$126.00
Cena regularna
Koszt wysyłki obliczany przy realizacji zakupu.
Works with Trinocular Microscopes

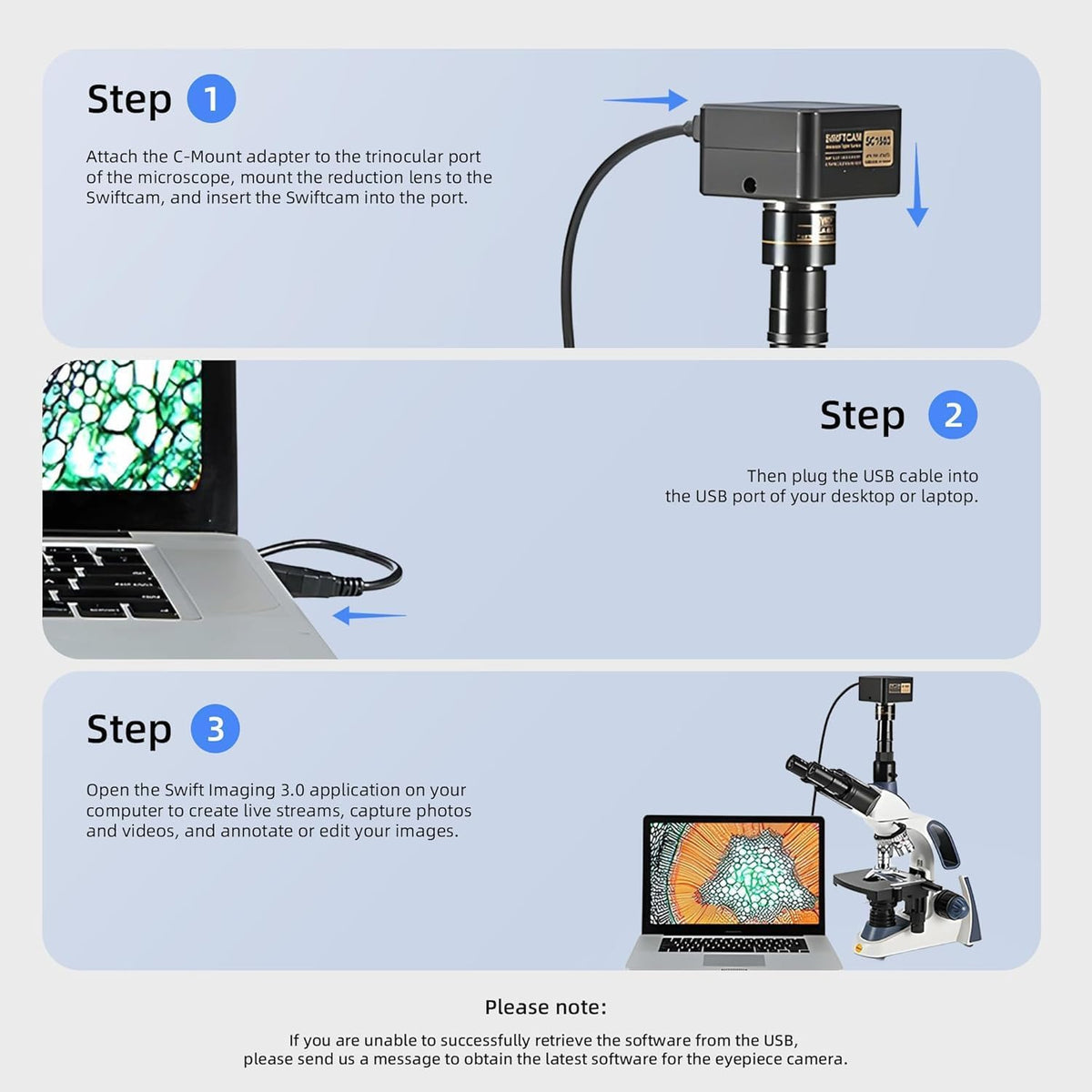

Step 1
Attach the C-Mount adapter to the microscope's trinocular port, attach the reduction lens to the Swiftcam, and insert the Swiftcam into the port
Step 2
Then insert the USB into the USB port of your desktop or laptop computer
Step 3
Open the Swift Imaging 3.0 application on your computer to livestream, capture photographs and video, and annotate or edit your images
Software Information and Packing List
Compatible operating systems for software
- Windows Vista/7/8/10/11 (32 and 64 bit)
- Mac OS X
- LINUX
System requirements for software
- CPU equivalent to Intel Core2 2.8GHz or higher
- 2GB of memory or more
- USB3.0 High-speed Port
- USB flash disk
- 17" display or larger

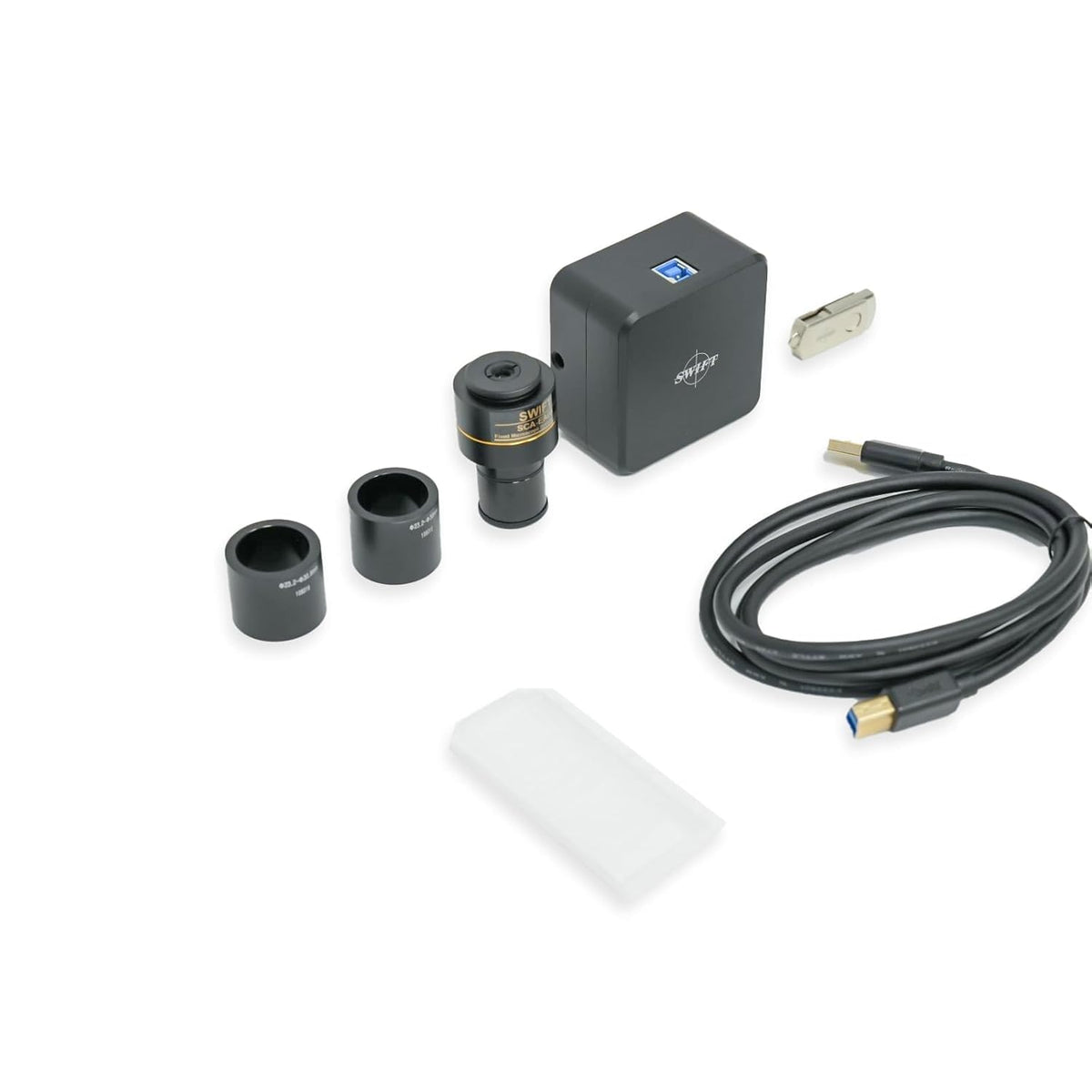

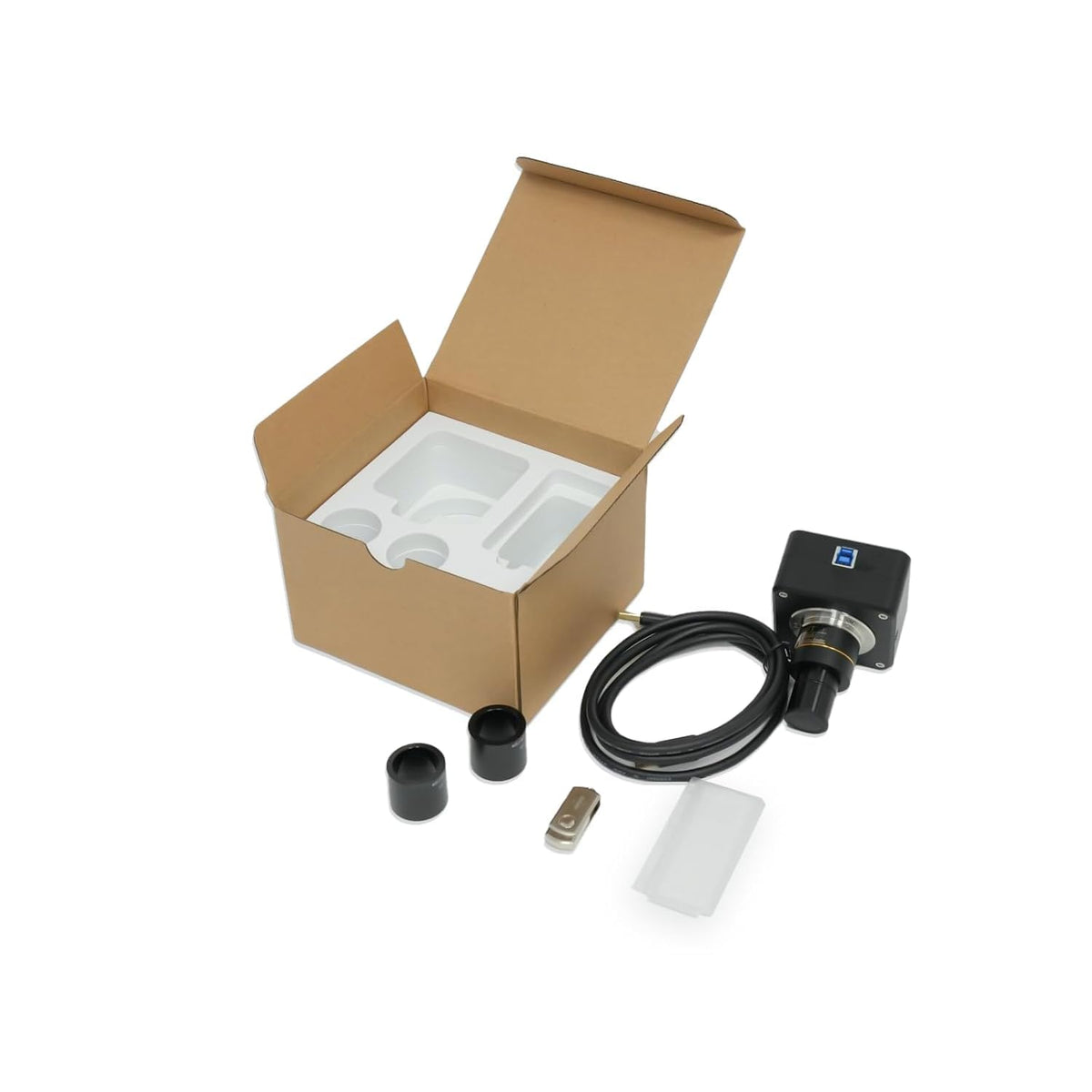

Packing List
- 1 Swiftcam SC2003R-CK
- 1 0.5x Reduction lens
- Eyepiece adapters: 30mm and 30.5mm
- Calibration slide
- USB 3.0 cable
- USB flash disk
- Quickstart guide
SW200DL
|
SW380B
|
SW350T-EP1-BSC
|
S7-TS-CA05-56
|
Eyepiece Camera 5 MP USB 2.0
|
S7-TP520-EA10-56
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
703
|
416
|
173
|
22
|
193
|
46
|
| Price | $93.99 | $239.99 | $279.99 | $469.98 | $89.99 | $339.99 |
| Type of Product | Monocular Compound Microscope | Binocular Compound Microscope | Trinocular Compound Microscope | Stereo Microscope | Microscope Camera | Stereo Microscope |
| Objectives | 4X, 10X and 40X | 4X, 10X, 40X (Spring), 100X (Spring, Oil) | 4X, 10X, 40X (Spring), 100X (Spring, Oil) | 0.7X-4.5X zoom | no data | 0.7X-4.5X zoom, additional 0.5X and 2X |
| Magnifications | 40X, 100X, 250X, 400X, 1000X | 40X, 100X, 250X, 400X, 1000X, 2500X | 40X, 100X, 250X, 400X, 1000X, 2500X | 7X-45X | no data | 7X-45X continuous, 5X and 20X |
| Included | Dual LED Light | no data | 1.3mp camera and slides | 56-Bulb LED Ring Light | no data | 56-Bulb LED Ring Light |

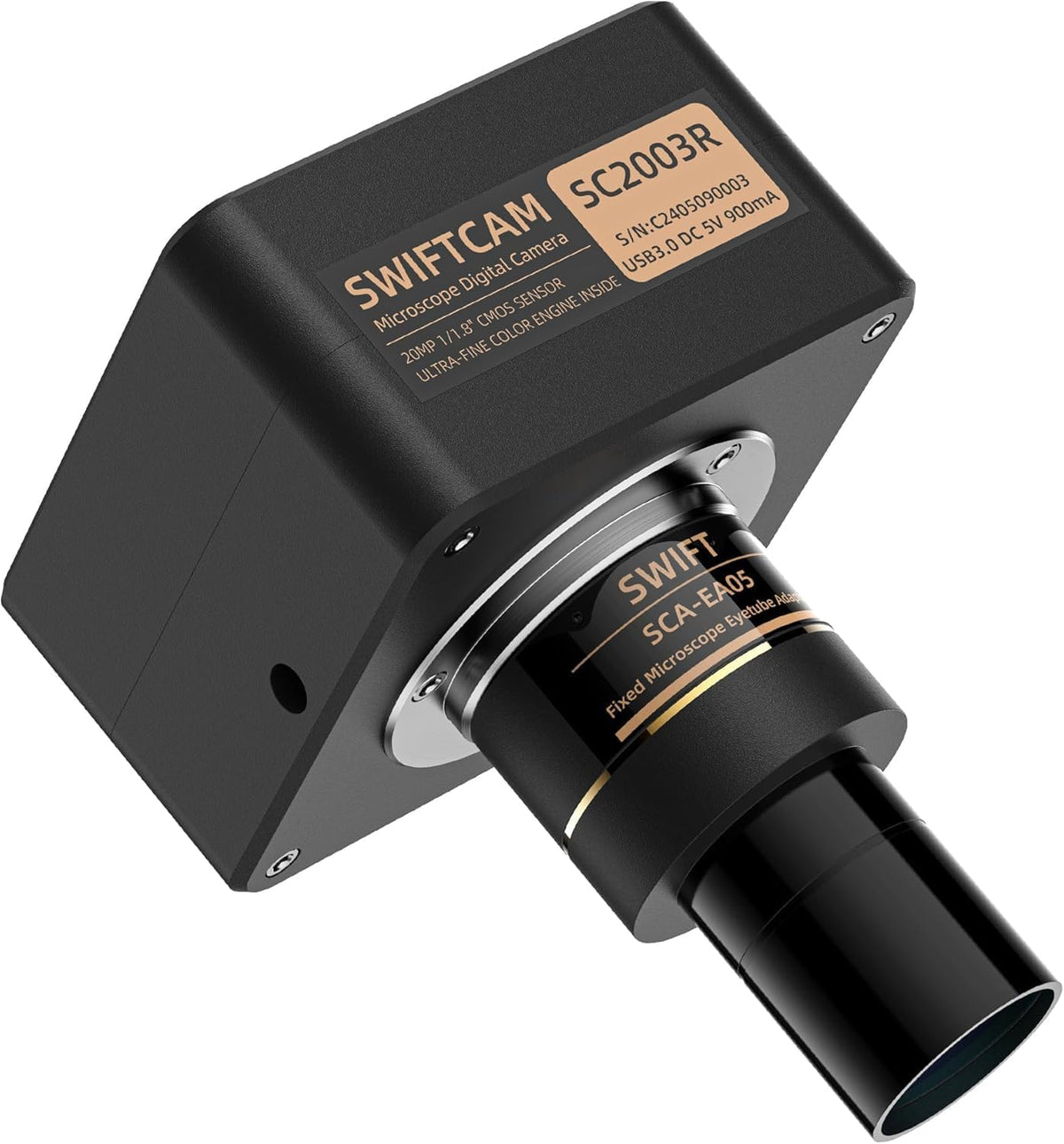

- Equipped with a 1/1.8â 20-megapixel sensor that captures detailed still images and videos. Delivers high color fidelity and clarity for professional documentation in clinical, industrial, and research applications

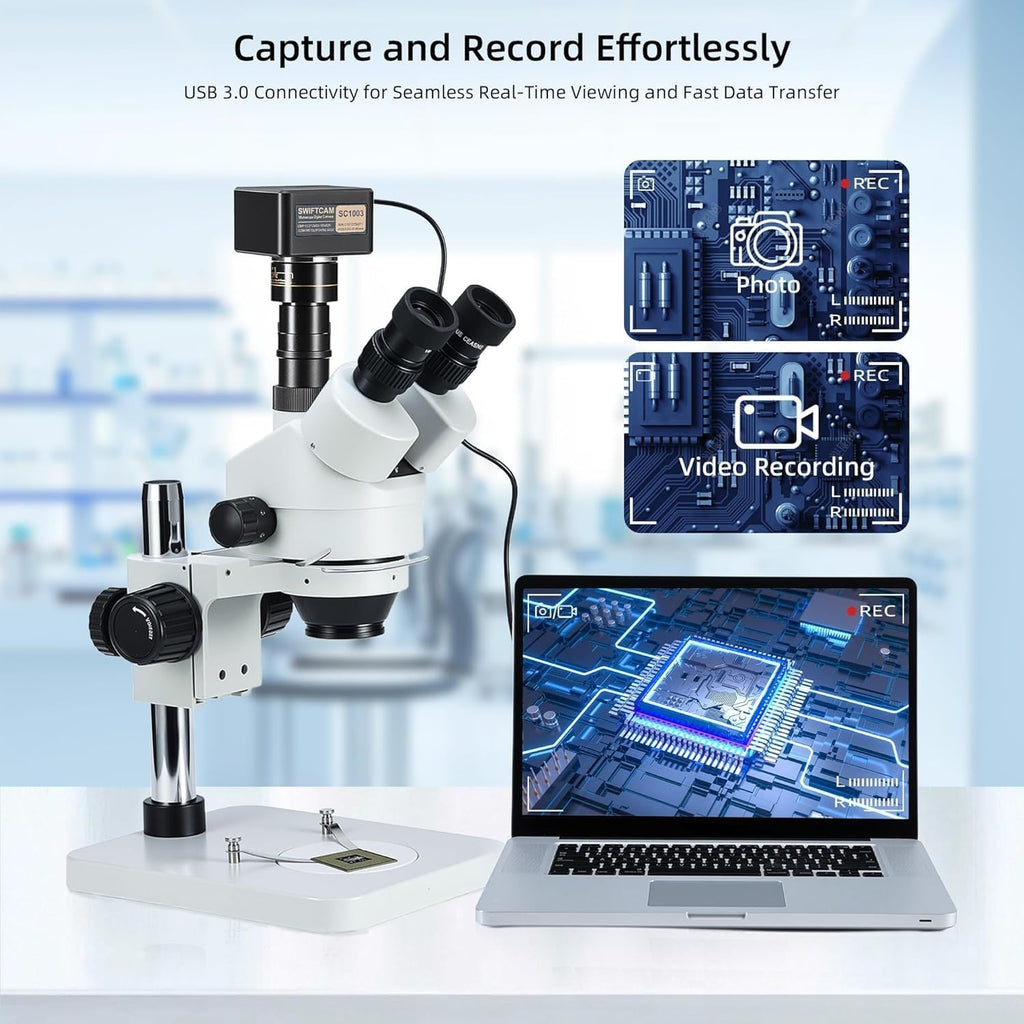

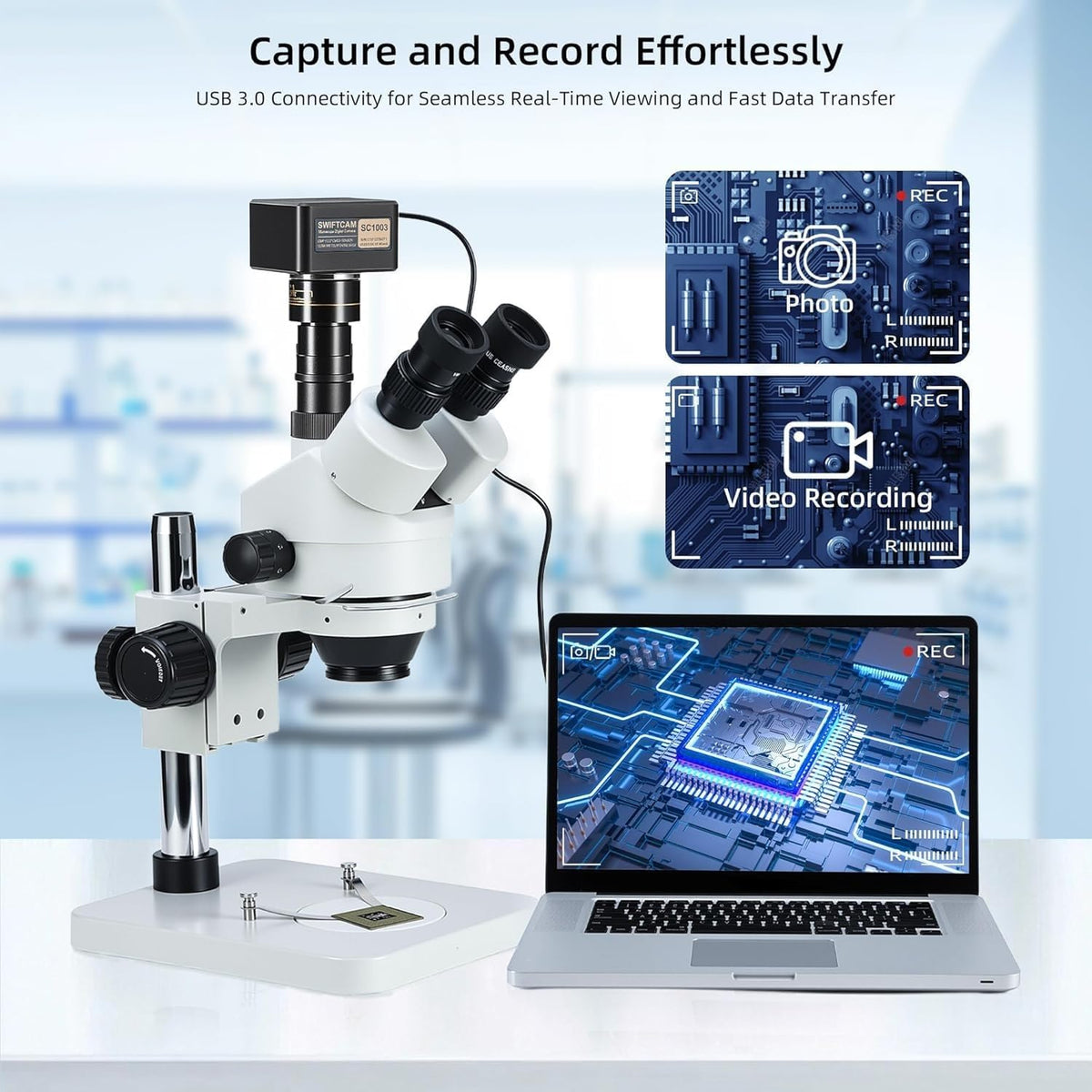

- Features USB 3.0 connectivity for fast data transfer speeds up to 5Gbps. Ensures smooth, low-latency live viewing and high frame rates, effectively reducing lag compared to standard USB 2.0 cameras
- Includes a reduction lens to broaden the camera's field of view, closely matching the visual experience of microscope eyepieces. A calibration slide is provided for accurate size measurements within the software

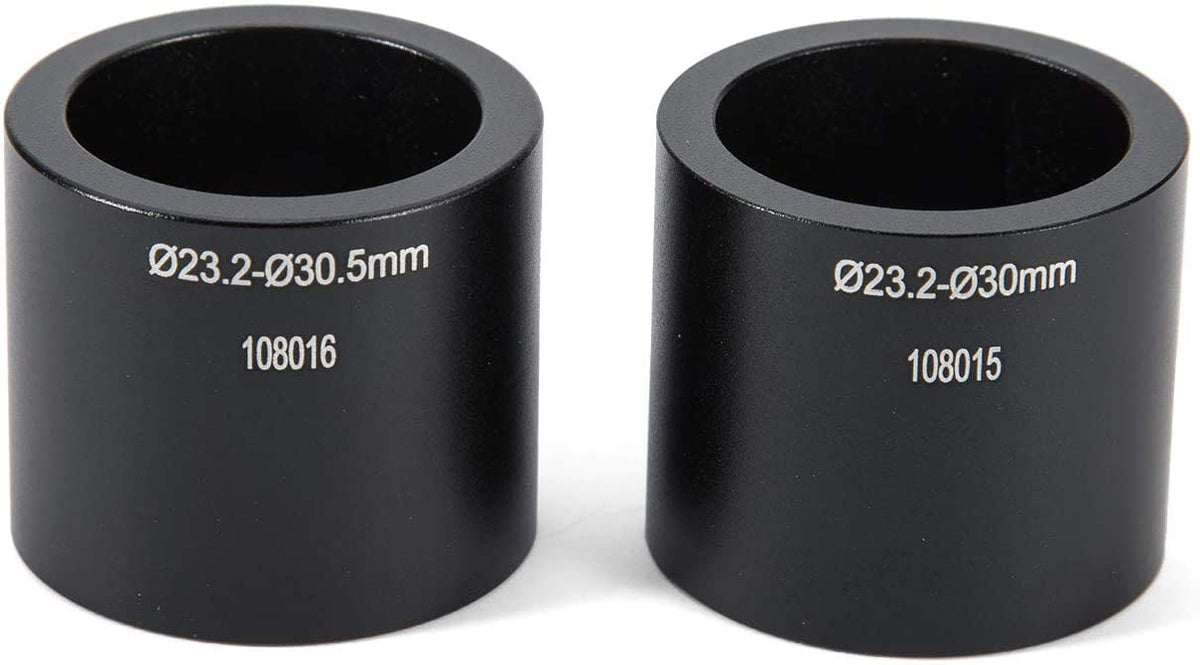

- Designed with a standard C-mount interface for trinocular ports. The kit includes 23.2mm, 30mm, and 30.5mm adapters, allowing attachment to the eyepiece tubes of most biological and stereo microscope
- User-friendly software is compatible with Windows, Mac, and Linux operating systems. Advanced functions include image stitching, extended depth of focus (EDF), and precision measurement tools for detailed analysis
| Color | 20 Megapixel 3.0 |
| Real Angle of View | 30 degrees |
| Magnification Maximum | 400 x |
| Brand | SWIFT |
| Compatible Devices | Personal Computer |
| Objective Lens Description | reduction lens |
| Power Source | Battery Powered |
| Unit Count | 1 Count |
| Number of Items | 4 |
| Number of Packs | 1 |
